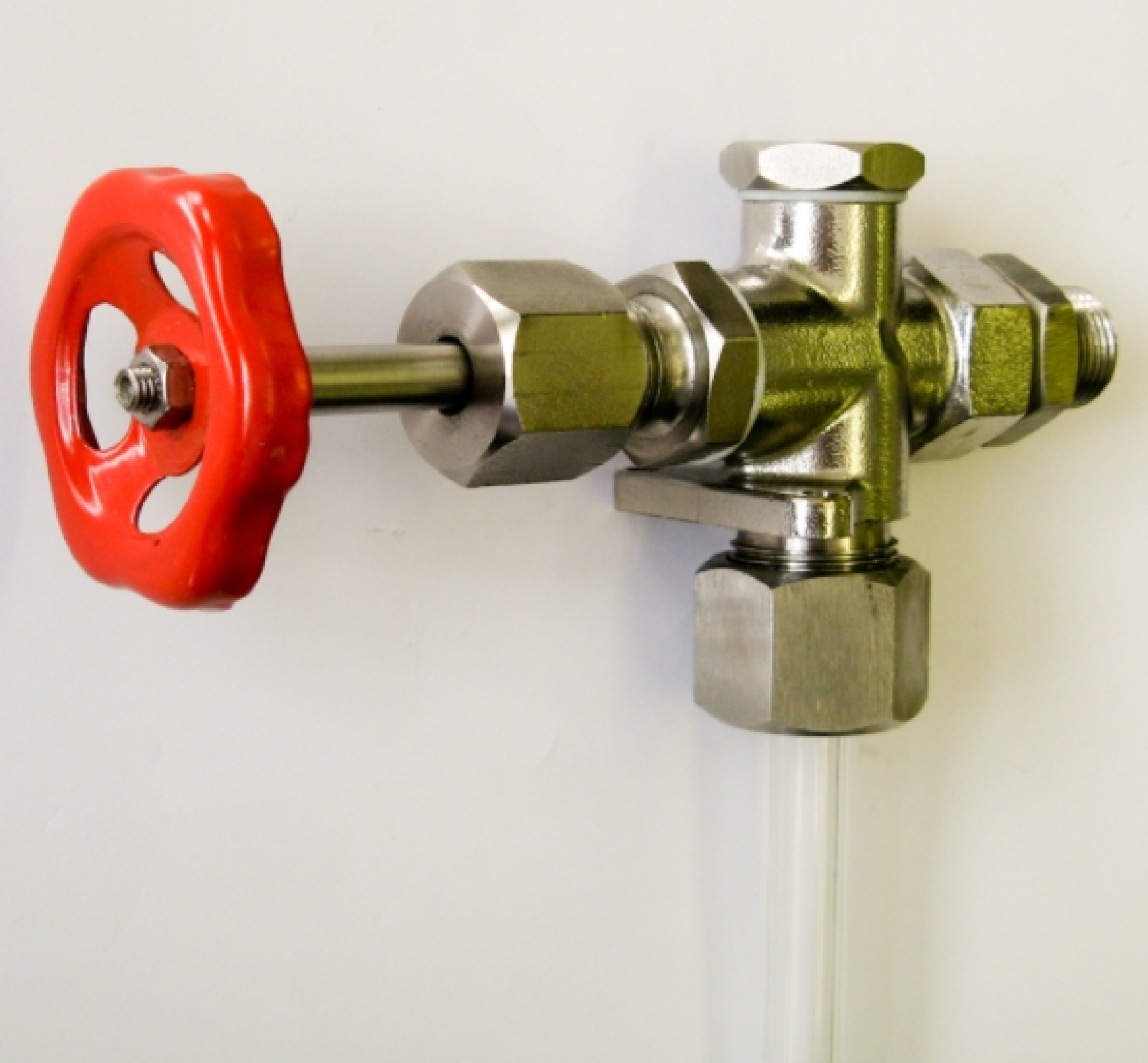

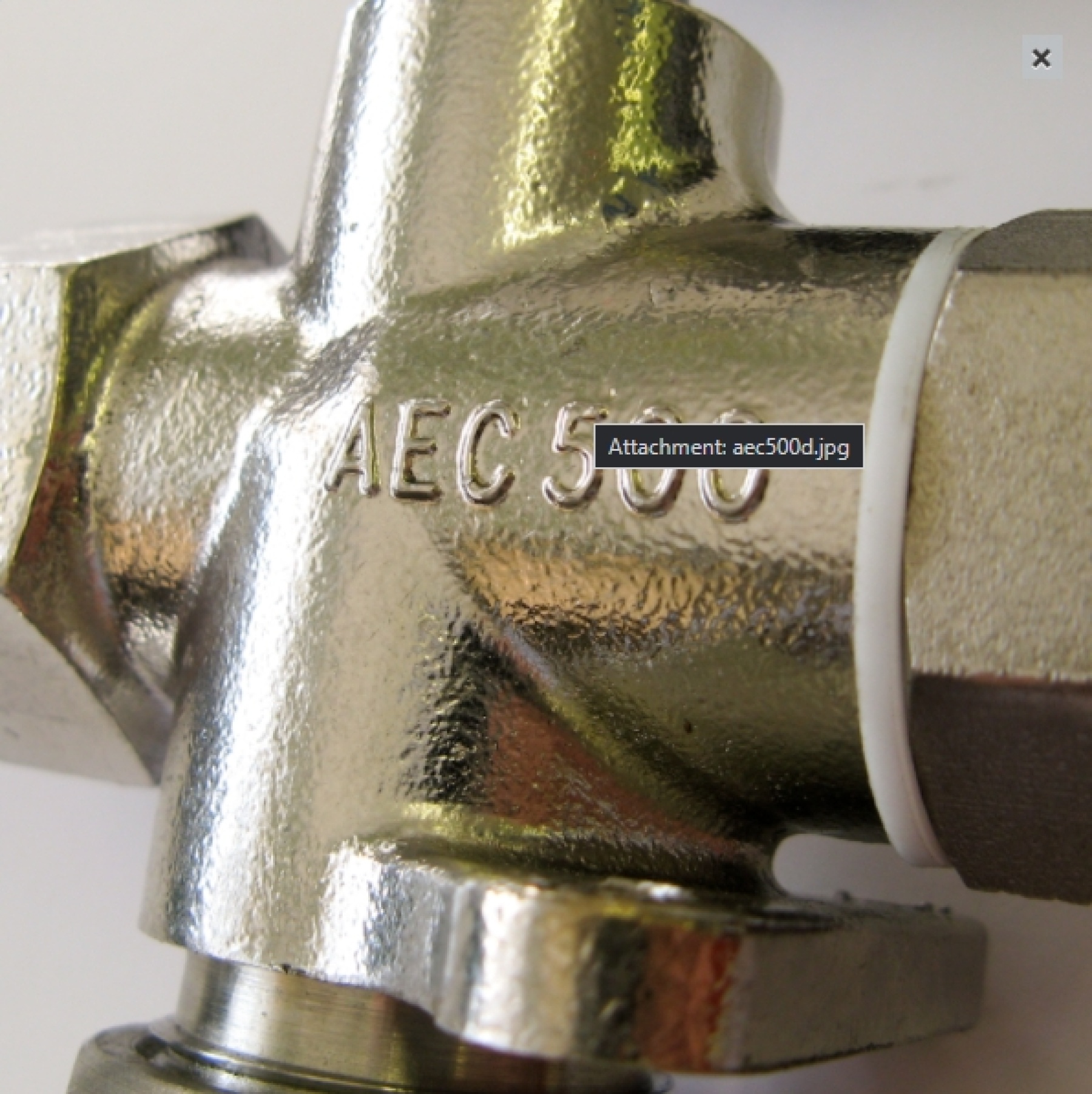

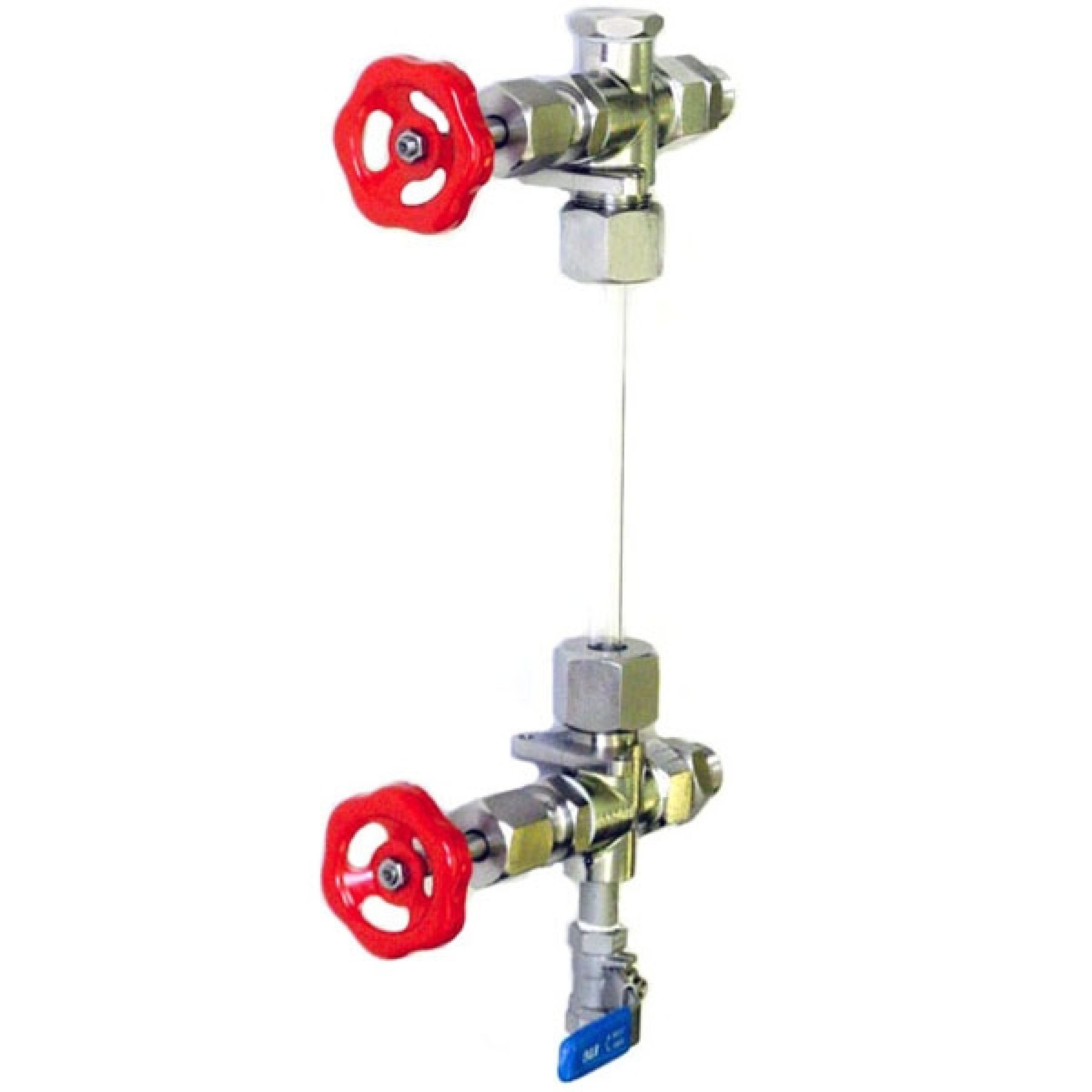

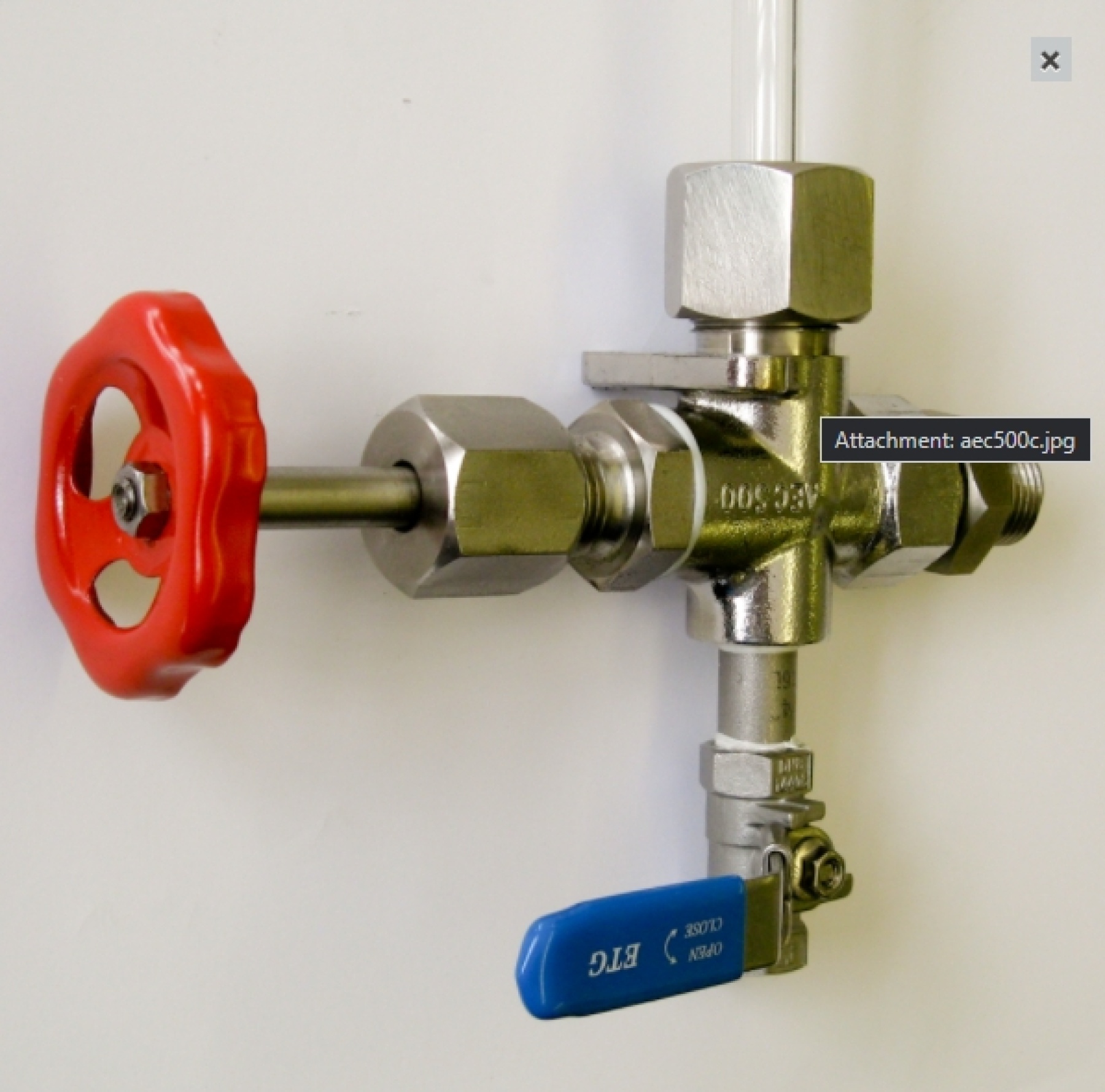

Wheel operated shut-off in both arms, Coolgrip handwheel and drain valve. We offer stainless steel tubular guards and or guard rods as a means of glass protection. We just need the centres to calculate the size and cost. Material (Body): This is an investment casting manufactured in Stainless Steel 316. Finish: A.C.S.F. (Anti-corrosive surface finish) Hyd. test pressure 400 lbs/sq in 28 BAR Max S.W.P. 175 lbs/sq in 13 BAR at 392 DegF / 200 degC Max C.W.P. 200 lbs/sq in 14 BAR Flanges to your specification x 1/2" glass tube size
Data Sheet
