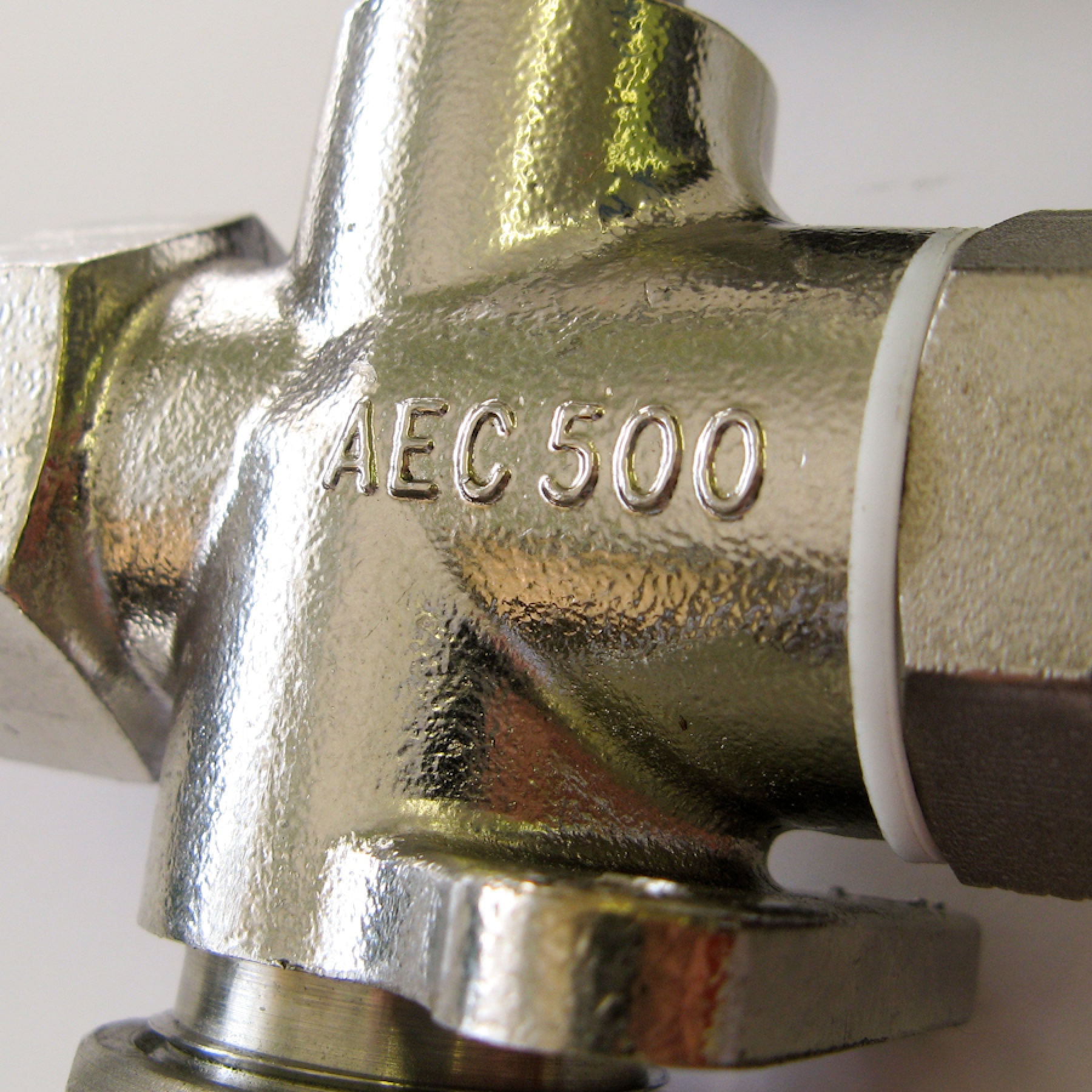

Tank Gauge AEC500 1/2 x 1/2 SS

• Remove from wishlist Add to wishlist
• Remove from compare Add to compare
• Share

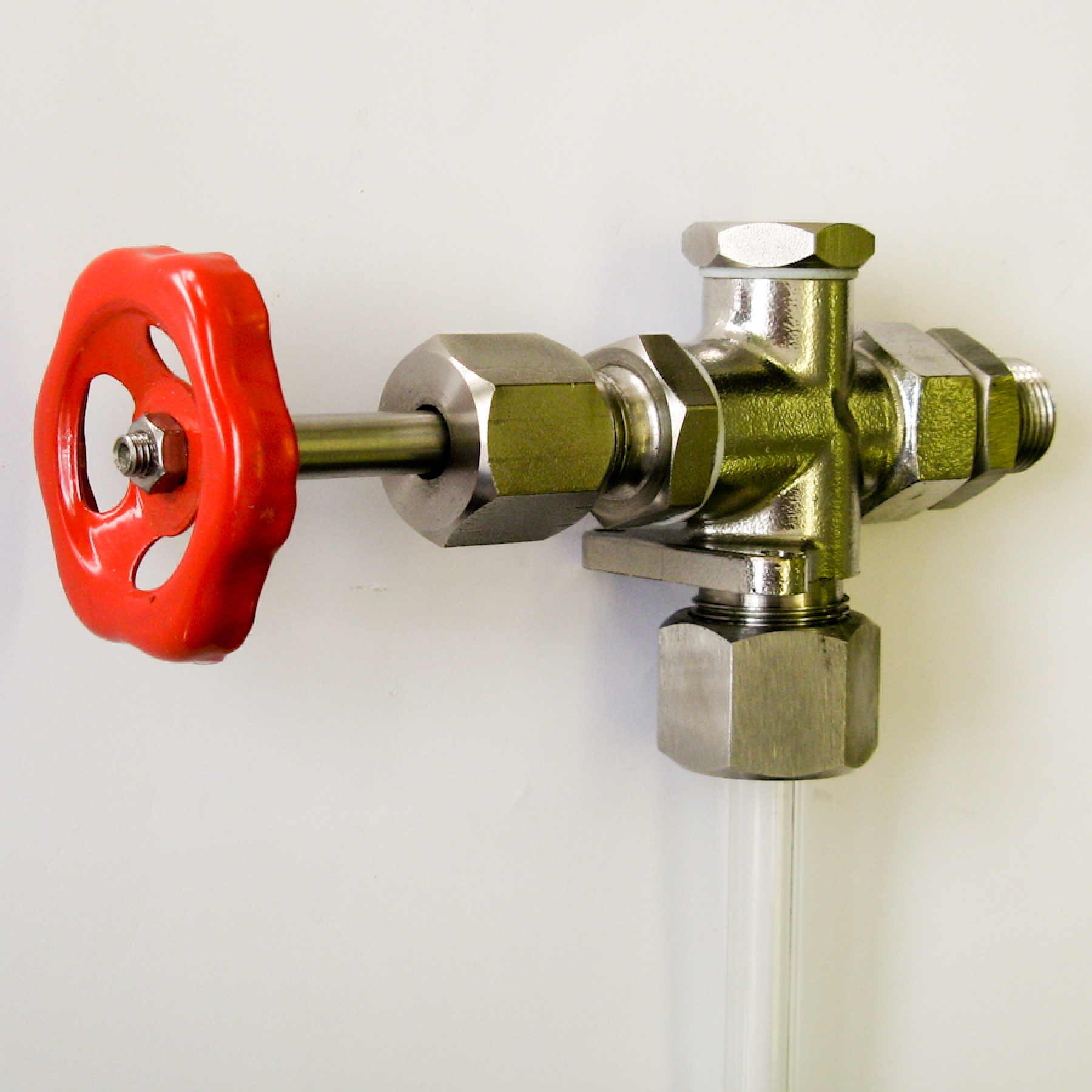

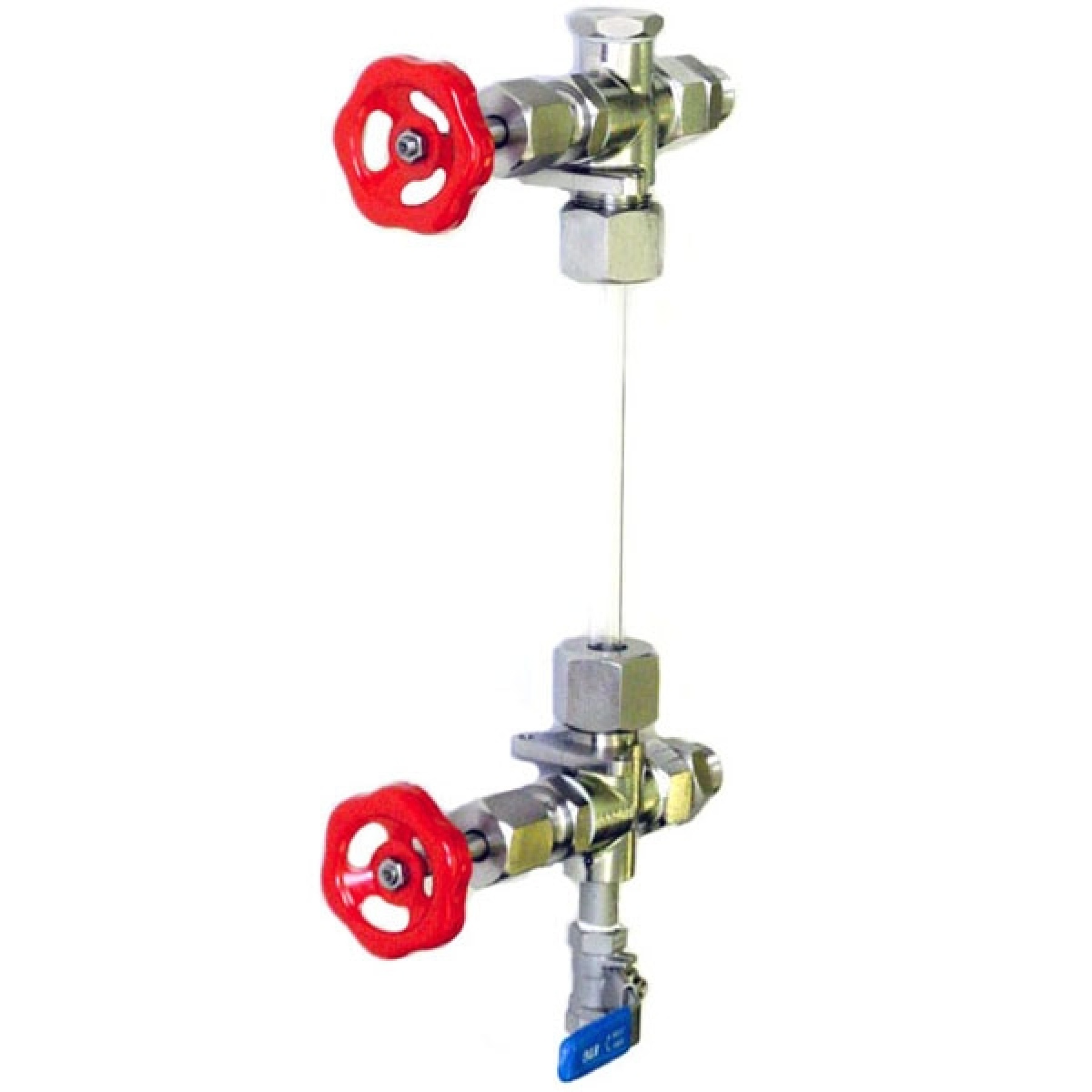

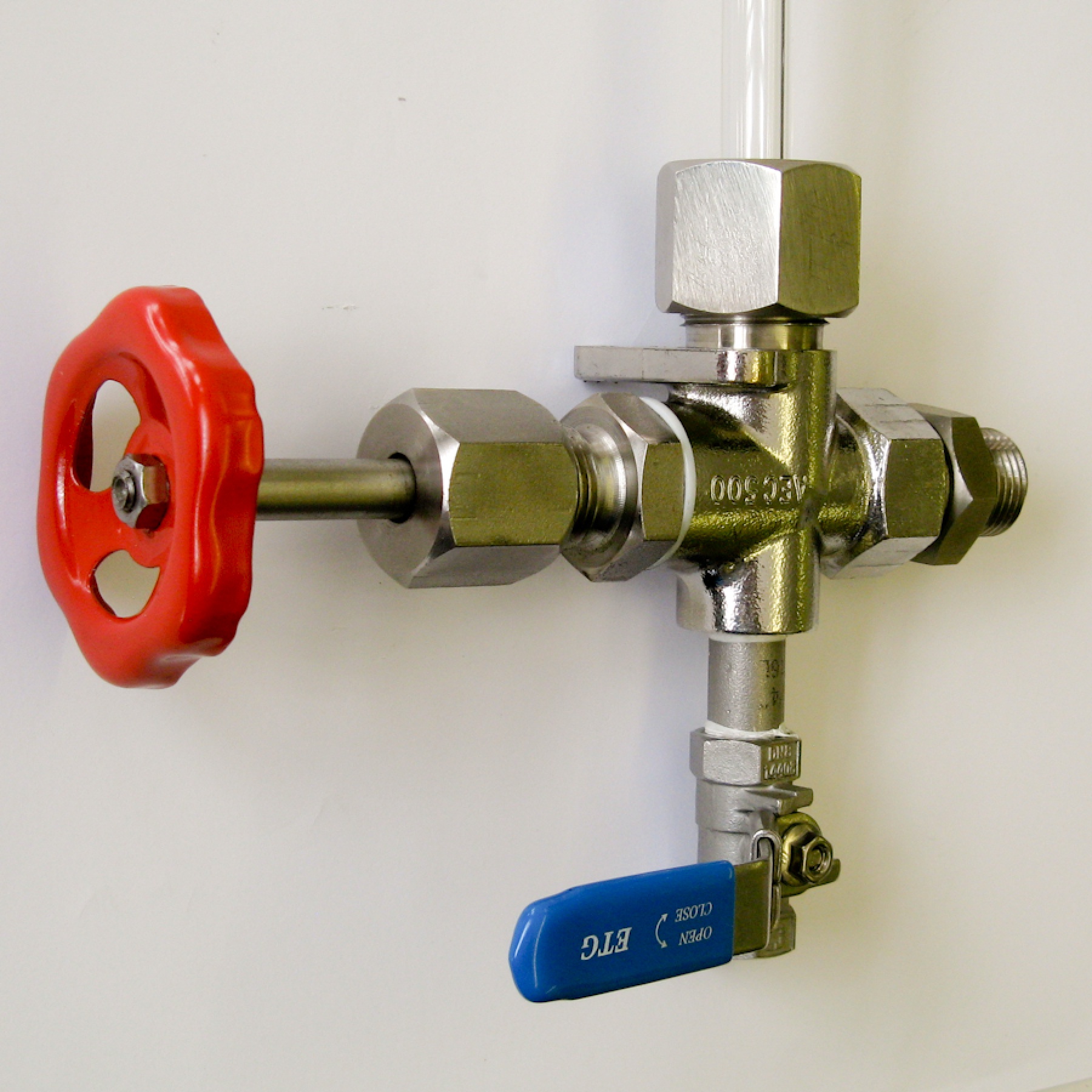

Wheel operated shut-off in both arms, Coolgrip handwheel
and drain valve. We offer stainless steel tubular guards and or guard
rods as a means of glass protection. We just need the centres to
calculate the size and cost. We can also offer flanged versions. Material (Body): This is an investment casting manufactured in
Stainless Steel 316. Finish: A.C.S.F. (Anti-corrosive surface finish). Hyd. test pressure 400 lbs/sq in 28 BAR. Max S.W.P. 175 lbs/sq in 13 BAR at 392 DegF / 200 degC. Max C.W.P. 200 lbs/sq in 14 BAR. Connections 1/2" bsp x 1/2" glass tube size.

Data Sheet
